VDI Assessment with Stratusphere FIT – Manual Agent Installation

Continuing with our VDI Assessment, now that we have the hub appliance installed, we can deploy the Connector ID Software (agents) to the physical computers to begin our data collection.  For Windows, there are EXE and MSI based installation packages.  The Connector ID software can be found by logging into the Administration module of your Stratusphere Hub then going to Hub Administration | Connector ID Keys | Connector ID Key Software.

v\:* {behavior:url(#default#VML);} o\:* {behavior:url(#default#VML);} w\:* {behavior:url(#default#VML);} .shape {behavior:url(#default#VML);} Installing the agent manually with the .EXE file

First, we’ll go through the steps to install the agent manually using the EXE file to present what occurs when the agent is deployed.
1.         Login to the Liquidware Labs administrator console and click Hub Administration | Connector ID Keys and then click Windows – Standard Version to download the .EXE file to the local workstation.

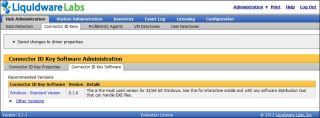

Download the EXE file using the Windows – Standard Version link
2.         Double-click the executable and when the Welcome screen launches, click Next.
3.         On the Hub Registration screen, select Use Defaults and click Next.  When this is selected, the agent will communicate with the hub appliance from which the .EXE was originally downloaded.  If you click on Customize installation, you can specify the IP address of the hub appliance, handy if you have multiple hub appliances, and you can also specify a machine group (a grouping of similar computers)

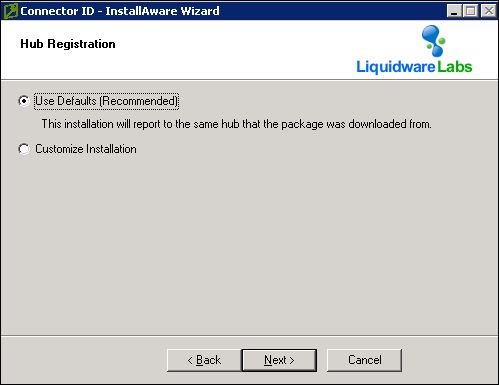

Configure Hub Registration
4.         On the Select Destination screen click Next
Default destination directory
5.         On the Completing the Install Wizardscreen, click Next.
6.         Click Finish to complete the installation.
7.         Open the Services console and verify that the Liquidware Labs services are running.

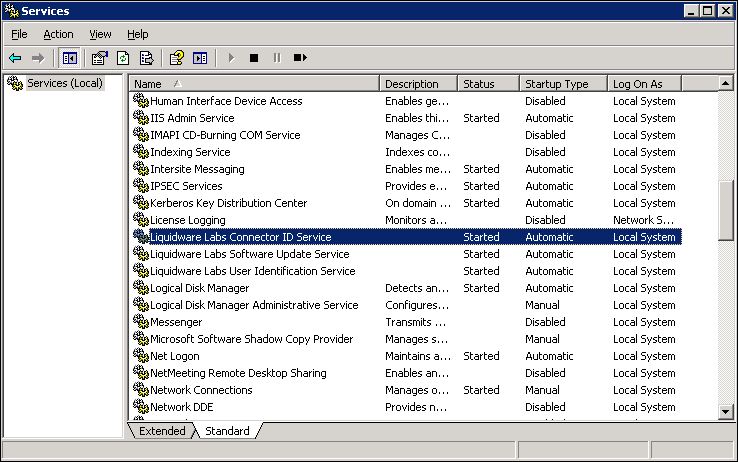

Verify that the Liquidware Labs services are running
The EXE file has installation switches that will allow for a silent installation (/s) so as to work with network login scripts or any other application deployment tool.  You can also, use the /x switch to uninstall the agent once the data collection period has ended.
