Creating Custom EXEs with Smart Install Maker

On a recent Citrix project, I needed/wanted to do 3 things on end-user computers:

  • Remove the 11.x Citrix Web Plugin if it existed
  • Run the ReceiverCleanupUtility to uninstall older versions of the Online Plugin or Citrix Receiver
  • Install Citrix Receiver 4.4 using a custom command-line

Ultimately, I wanted the users to be able to do all this with a single click from the StoreFront page.  After a little research, Citrix has published steps on creating a custom Receiver package with Smart Install Maker.  I used Smart Install Maker to create a custom EXE to complete the 3 items listed above and will use StoreFront to make it available to the end-users.  This post is simply a recap of the steps required to create the EXE with screenshots.

1.Personally, I used VMware Workstation to create a “clean” VM (Windows 7) on which to install Smart Install Maker and test my custom EXE.  Perhaps you have access to other tools, but I recommend performing these tasks on your primary administrative device.

2.On my clean VM, I created a Receiver directory on the root of C and in that directory, I downloaded Citrix Receiver 4.4, the Citrix ReceiverCleanupUtility, and the .BAT file I created to perform these steps.  My .BAT file is shown below:

  • ECHO.
    ECHO Removing existing Citrix ICA/Receiver Clients
    REM ***********************************************************
    REM * The MsiExec executable uninstalls the Citrix Web Plugin *
    REM ***********************************************************
    MsiExec.exe /X{C0B165DC-F037-483F-B1C9-D89D91529CEB} /qn /norestart
    ReceiverCleanupUtility.exe /silent
    ECHO.
    ECHO Existing Citrix ICA/Receiver Client removed
    ECHO.
    ECHO Installing and Configuring Citrix Receiver 4.4
    CitrixReceiver.exe /includeSSON STORE0=”StoreService;https://yourstorefrontBaseURL.yourdomain.com/Citrix/Store/discovery;On;CTXStore” ALLOWADDSTORE=A ALLOWSAVEPWD=A

3. Download and install Smart Install Maker and your clean VM.  **Note:  A “full” copy of Smart Install Maker is $99.  If you do not purchase a full copy, you can use SIM for 30 days, though each execution of a custom EXE will display a “You are using a Demo” popup window.  The install of SIM is pretty straightforward.

4. Launch SIM.  On the Installer | General options screen, specify a name for the custom installation package in the Save as heading which determines where the final executable will be saved.  In this example, SIM will save the custom EXE (CustomSetup.exe) into the C:\Temp\Receiver folder.

2-Installer_GeneralOptions

5. On the Installer | Files options screen, click the plus icon (highlighted below) to add files to the project.

3-Install_Files



6. On the Add Item window, click the folder icon to the right of the Source file heading.


7. On the Open window, select the Citrix Receiver installation executable as well as any required BAT files and click Open.

5-Open

8. When returned to the Add Item window, change the Destination directory and click OK.  The destination directory is simply the location to which the process will copy any necessary files.  In this example, I changed the destination directory to C:\CitrixRec…when the custom EXE is executed on a remote computer, a C:\CitrixRec directory will be created which contains the files added into the project.

6-CitrixRec_DestinationDirectory

9. On the Installer | Dialogs options screen, select Silent installation and change the Destination Path to C:\CitrixRec.

7-File_Dialog

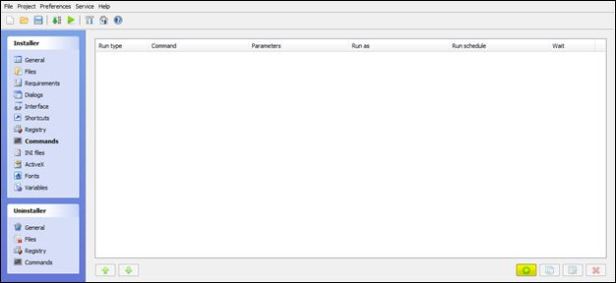

10. On the Installer | Commands options screen, click the plus icon (highlighted below) to command files to the project.

8-Install_Commands

11. On the Add Item screen, click the select file icon (highlighted below) to add command files to the package.



9-AddItem

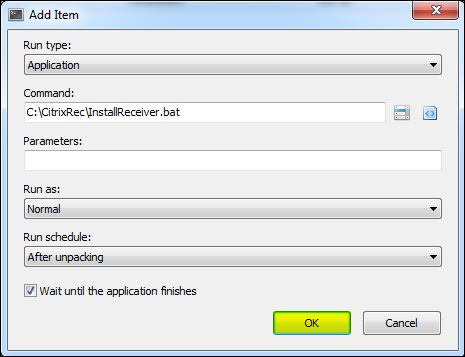

12. On the Select a file window, select the BAT file used to install Citrix Receiver with customized settings and click OK.  When returned to the Add Item window, select After unpacking under Run schedule, then select the Wait until the application finishes checkbox and click OK.

10a-AddItemDone

10b-CommandsCompleted

13. On the top level menu, click Project | Build Installer.

11-BuildPackage

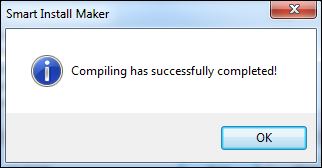

14. The project will begin to compile as shown below.  Click OK when compiling has completed successfully.

12a-Compile1

12b-Compile2

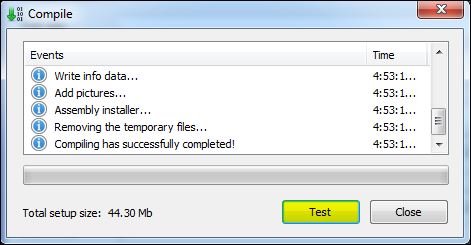

15. On the Compile screen, click Test if you want to test the new executable from the compile screen; otherwise click Close.

13-Test

16. Verify the success/failure of the package and make changes as required to the .BAT file. Once the package performs as desired, deploy and test the custom EXE to a pilot group, and then map out a strategy for deploying to the organization.
